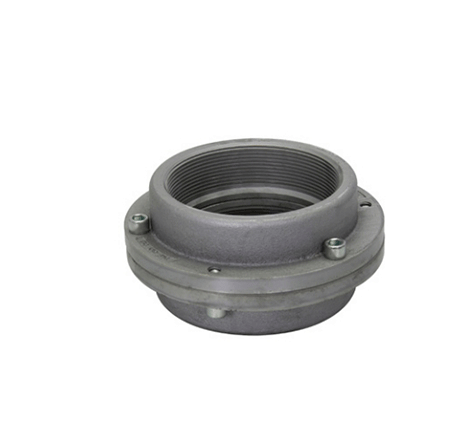

UNF305SS Union cUL/UL/CSA 防爆由任

品牌： EATON CROUSE-HINDS
型号: UNF215 SS UNF305 SS UNF105 SS UNF205 SS UNF605 SA UNF17 UNF405 UNF605 UNF105 SA UNF105 UNF215 SA UNF305 SA UNF505 SA UNFL27 UNF406 UNFA2N UNF405 SA UNF305 UNF215 UNF205 UNFL37 UNF606 UNF37 UNF506 UNFL17 UNF27 UNF205 SA UNF505 UNF014 UNF1005 SA UNF012 UNF805 SA UNF706 UNF905 UNF805 UNF705 UNF705 SA UNF1005 UNF806
产品说明: UNF unions are installed in threaded thick wall conduit systems:
• UNY – to connect conduit to a conduit fitting, junction box or device enclosure
• UNF – to connect conduit to conduit, or to provide a means for future modification of the conduit system
UNA / UNL unions are used in conduit and fitting installations when entrance angle is between 90° and 180°.
EL elbows are installed in conduit run or in box or fitting hub:
• To change direction in threaded rigid conduit run by 90°, or when terminating at a box or fitting
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC- 总代理-Kunshan Beiyuan Electric Co.,Ltd

分享到:

立即咨询

产品详情
产品手册

Certifications:
NEC/CEC:
EL 1/2”, 3/4”, 1”
UNF/UNY -105, -215, -205, -305,UNL -105, -125, -215, -205
• Class I, Divisions 1 & 2, Groups A, B, C, D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III
UNF/UNY -406, -506, -606, -706, -806,-905, -1005
• Class I, Divisions 1 & 2, Groups B, C, D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III
EL, UNF, UNL, UNY – All Sizes
• Class I, Divisions 1 & 2, Groups C, D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III
UNA
• Class I, Divisions 1 & 2, Group D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III
UL standard:
• UL1203
CSA standard:
• C22.2 No. 30
Standard materials:
• UNY, UNF unions – 1/2” to 1” and 11/2”:steel
• UNY, UNF unions – 11/4” to 6”: Feraloy iron alloy
• UNL, UNA unions – Feraloy iron alloy
• EL elbows – Feraloy iron alloy or ductile iron
Standard finishes:
• Steel – electrogalvanized with chromate treatment
• Feraloy iron alloy, malleable iron – electrogalvanized and aluminum acrylic
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC- 总代理-Kunshan Beiyuan Electric Co.,Ltd
经销：APPLETON,KILLARK,BARTEC,R.STAHL,RITTAL,HAWKE,CMP,CCG CABLE GLAND
Order No.:

UNY305 SS	UNF215 SS	UNL105 SA	UNL215
UNY105 SS	UNF305 SS	UNL215 SA	UNL205
UNY205 SS	UNF105 SS	UNL105	UNL125 SA
UNY215 SS	UNF205 SS	EL39	UNL205 SA
UNY305 SA	UNF605 SA	EL396	UNL125
UNY305	UNF17	EL69
UNY205	UNF405	EL295	UNA36
UNYA2N	UNF605	EL19 SA	UNA16
UNY215 SA	UNF105 SA	EL1	UNA26
UNY205 SA	UNF105	EL296 SA
UNY37	UNF215 SA	EL29 SA
UNY105 SA	UNF305 SA	EL296 S752
UNY505 SA	UNF505 SA	EL296
UNY605	UNFL27	EL9
UNY606	UNF406	EL3
UNY506	UNFA2N	EL395
UNY27	UNF405 SA	EL5
UNY605 SA	UNF305	EL7
UNYL37	UNF215	EL8
UNY405	UNF205	EL39 SA
UNY17	UNFL37	EL2
UNYL27	UNF606	EL496
UNY406	UNF37	EL196
UNY405 SA	UNF506	EL195
UNYL17	UNFL17	EL196 S752
UNY505	UNF27	EL10
UNY105	UNF205 SA	EL49
UNY215	UNF505	EL59
UNY1005 SA	UNF014	EL196 SA
UNY805	UNF1005 SA	EL396 SA
UNY806	UNF012	EL79
UNY805 SA	UNF805 SA	EL59 SA
UNY706	UNF706	EL49 SA
UNY014	UNF905	EL69 SA
UNY1005	UNF805	EL4
UNY905	UNF705	EL6
UNY012	UNF705 SA	EL19
UNY705	UNF1005	EL29
UNY705 SA	UNF806
