产品分类

LBY25 Conduit Box NEC / CEC 标准防爆穿线盒

品牌： EATON CROUSE-HINDS
型号: LBY15 LBY45 LBY55SAS752 LBY35SA LBY35 LBY25SA LBY15SA LBY25 LBY35SAS752 LBY15SAS752 LBY45SA LBY25S752 LBY55SA LBY55
产品说明: CROUSE-HINDS Condulet LBH conduit bodies with covers and SLB, LBY, ET elbows and tees
LBH conduit outlet bodies are installed in hazardous areas to:
• Act as pull outlets especially for conductors that are stiff due to large size or type of insulation
• Make 90° bends in conduit system, allowing straight pull in either direction
• Provide for conduit service entrance to buildings
• Provide for conductor entrance to motors
• Provide access to wiring for maintenance and future system changes

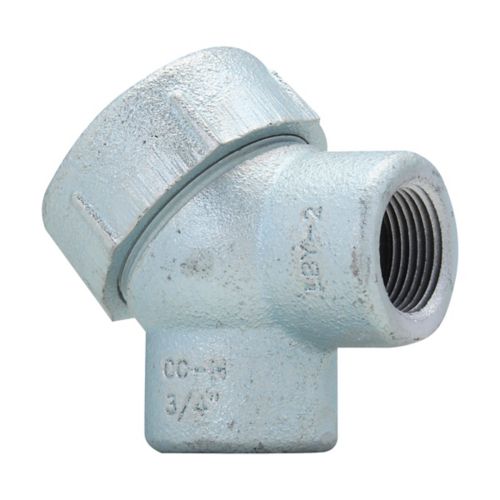

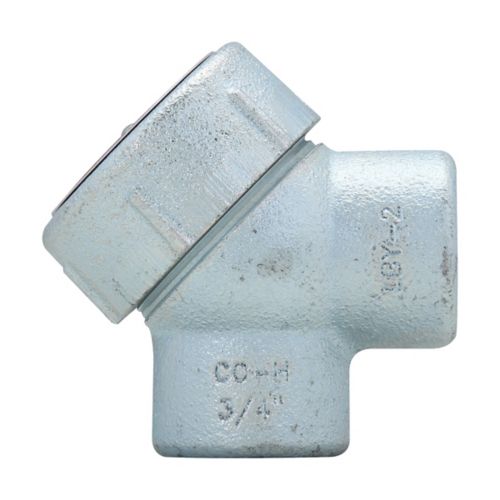

SLB and LBY elbows are installed in conduit systems within hazardous areas to:
• Make 90° bends in conduit systems where space is limited
• Act as pull outlets
• Provide access to conductors for maintenance and future system changes
ET short radius tees are installed in conduit systems within hazardous areas to:
• Allow single conduit stub up to outlet and device boxes located above or below main conduit runs; elim
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC - 总代理-昆山倍源电气有限公司

分享到:

立即咨询

产品详情
产品手册

CROUSE-HINDS Condulet LBH conduit bodies with covers and SLB, LBY, ET elbows and tees
Certifications :
NEC:
LBH10-LBH20
• Class I, Divisions 1 & 2, Groups B, C, D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III
LBH30-LBH100
• Class I, Divisions 1 & 2, Groups C, D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III
LBY
• Class I, Divisions 1 & 2, Groups C, D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III
ET
• Class I, Divisions 1 & 2, Groups A, B, C, D
• Class II, Division 1, Groups E, F, G
• Class II, Division 2, Groups F, G
• Class III
UL standard:
• UL1203
CSA standard:
• C22.2 No. 30
Standard materials:
• LBH, LBY, ET – Feraloy® iron alloy
• SLB – copper-free aluminum
Standard finishes:
• LBH, ET – electrogalvanized and aluminum acrylic paint
• LBY – electrogalvanized
• SLB – natural
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC- 总代理-Kunshan Beiyuan Electric Co.,Ltd
经销：APPLETON,KILLARK,BARTEC,R.STAHL,RITTAL,HAWKE,CMP,CCG CABLE GLAND
Crouse-Hinds Condulet LBH conduit bodies with covers and SLB, LBY, ET elbows and tees Order No.:

LBY15	LBH60 SA	SLB1
LBY45	LBH10	SLB5
LBY55SAS752	LBH80	SLB2
LBY35SA	LBH100 SA	SLB6
LBY35	LBH80 SA	SLB3
LBY25SA	LBH30	SLB4
LBY15SA	LBH20
LBY25	LBH60	ET328
LBY35SAS752	LBH70	ET218
LBY15SAS752	LBH50	ET228
LBY45SA	LBH70 SA
LBY25S752	LBH40
LBY55SA	LBH100
LBY55	LBH50 SA
