MEDC HD1ULU325NN Heat Detector Range

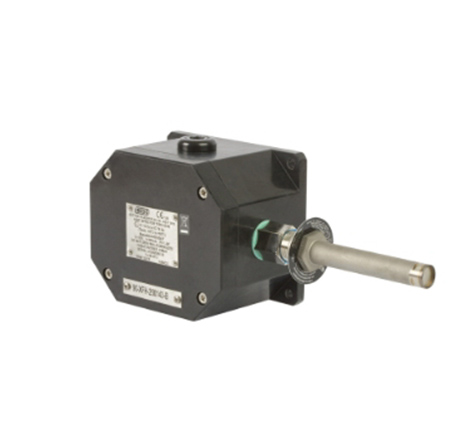

MEDC HD1 Heat Detector Range
Features
• UL Listed for USA and Canada:
 Class I, Div. 2,
 Groups A, B, C, D
• ATEX certified
• IP66 & IP67
• Certified temperature:
 –4ºF to +131ºF
 –20ºC to +55ºC
• Stainless steel probe
• Detector temperature settings
140ºF to 725ºF (60ºC to 385ºC)
• GRP enclosure

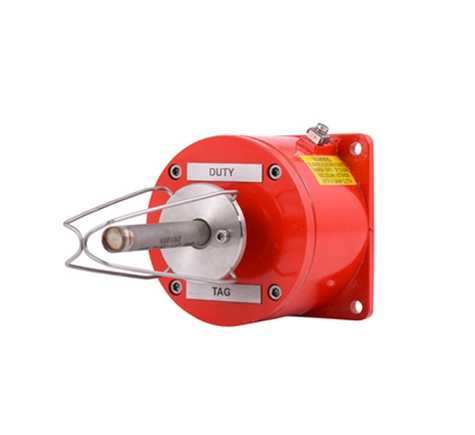

• Optional stainless steel guard
Certifications
UL Listing no. E252920 – versions up to 450ºF.
Listing no. E254077 – versions from 600ºF to 725ºF.
UL for USA and Canada, listed to Class 1, Div 2. Groups A, B, C, D
SIL SIL2 certified. Cert no. Sira FSP 12007/02
Specifications
Material Detector: stainless steel
Enclosure: GRP (anti-static)
Cover screws: stainless steel
Optional guard: 316 stainless steel
Finish Detector: sand blasted
Enclosure: natural black or painted to customer’s specification
Weight 2.4lbs (1.1kg)
Certified temp –4ºF to +131ºF
–20ºC to +55ºC
Ingress protection NEMA 4X & 6, IP66 & IP67
Operation The detector contact is normally open and closes at alarm
temperature
Contact rating 125Vac - 5A, 125Vdc - 0.5A, 48Vdc - 1A, 24Vdc - 2A
Entries 2 x ½” NPT (via supplied adaptors)
Terminals 6 x 12 AWG
Labels Optional stainless steel tag and duty labels
