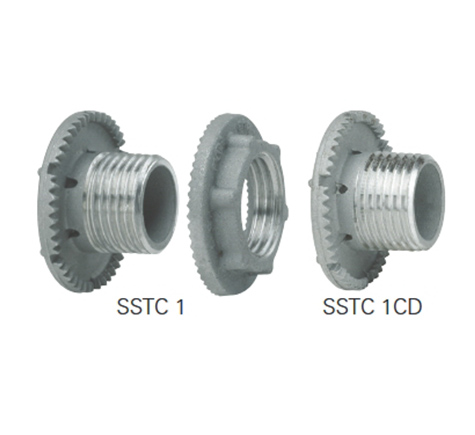

MYERS SSTC1CD NON-HAZARDOUS DRAIN PLUG – 316 STAINLESS STEEL

品牌： EATON CROUSE-HINDS
型号: SSTC 1 SSTC 1CD
产品说明: Crouse-Hinds series Myers hubs are used in the termination of electrical circuits through wall of an enclosure. They are designed for use indoors or outdoors with rigid conduit and IMC, and they are ideal for pharmaceutical, chemical and food processing, pulp/paper, nuclear, solar and commercial construction applications.
Myers hubs are available in a wide range of styles, trade sizes and materials to meet customer requirements and preferences. They are also available with multiple North American and international certifications to provide users with peace of mind.
Our ATEX Myers hub features additional listings for use in hazardous (classified) locations requiring IECEx/ATEX certifications. The ATEX Myers hub now features an extended operating temperature range of -55°C to 180°C, making it ideal for global requirements and OEMs shipping material worldwide.
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC- 总代理-Kunshan Beiyuan Electric Co.,Ltd

分享到:

立即咨询

产品详情
产品手册

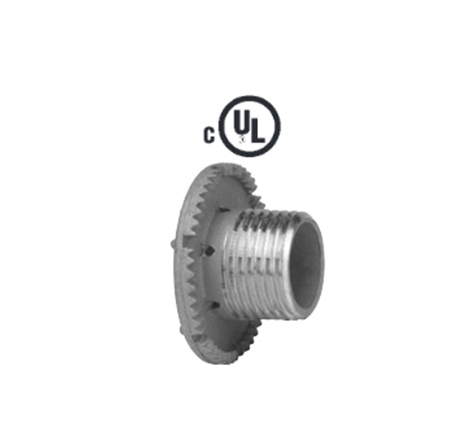

Certifications:UL , cUL , ATEX , IECEx
• NEC/CEC:UL File No. E23223
Class I, Division 2
Class II, Divisions 1 & 2
Class III, Divisions 1 & 2
Class I, Zone 1, AEx e II
Class I, Zone 1, Ex e II
• cULus Listed
UL Standard 514B
CSA Standard C22.2 No. 18
• NEMA Type 2, 3, 3R, 4, 4X, 12 (std. hub and ground hub)
• IEC:
STGK:
ATEX Certified ITS12ATEX47591X Ex II 2G Ex e IIC Gb to EN
60079-0:2009, EN 60079-7:2007, and EN 60079-14 Standards Ta -15°C to 120°C
IECEx Certified IECEx ETL 12.0009X Ex e IIC Gb to IEC 60079-0:2007-10, Edition 5, IEC 60079-7:2006-07, Edition 4 and IEC
60079-14 Standards Ta -15°C to 120°C
IP66
SSTGK M2:
ATEX Certified DEMKO 18 ATEX 2002X, II 2G Ex eb IIC Gb to EN IEC 60079-0:2018 and EN IEC 60079-7:2015 +A1:2018 standards Ta -55°C to 180°C
IECEx Certified IECEx UL 18.0007X, Ex eb IIC Gb to IEC 60079- 0:2017 and IEC 60079-7:2017 standards Ta -55°c to 180°C
IP66
Standard materials:
• Nut: Zinc (Zamek-2, Zamek-3), aluminum (Al 360), stainless (316)
• Body: Zinc (Zamek-2, Zamek-3), aluminum (Al 360), stainless (316)
• Insuliner: Lexan, PEEK GF15 (SSTGK M2 only)
• O-Ring: Viton; silicone (SSTGK M2 only)
• Ground Screw: Steel/stainless steel
Standard finishes:
• Aluminum – natural
• Zinc – natural
• Stainless – natural
EATON/CROUSE-HINDS/COOPER/CEAG/MEDC- 总代理-Kunshan Beiyuan Electric Co.,Ltd
经销：APPLETON,KILLARK,BARTEC,R.STAHL,RITTAL,HAWKE,CMP,CCG CABLE GLAND
Crouse-Hinds Myers Hubs Order No.:

ST 10	ST 1 CP	SSTG 1	STTBA 6
STA 6	STG 4	SST 9	STTBA 1
STAGN 5	STGN 6	STTB 2	STTTBA 3
STA 3	STGN 1	STTB 10	STTBA 7 SE
STAG 4	ST 2 BULK	STTTB 5	STAC 1ST
STAG 6	ST 2	STC 6	SSTGK 9 M2
STAGN 3	ST 5	STTB 9	STGK 2
STA 4	STGN 5	STTTB 4	STGK 4
STAG 5	STG 2	STTB 1	SSTGN 10
STAGN 6	ST 1 BULK	STTB 4	STM 6
STAG 2	STG 2 BULK	STC 3	SSTGK 1 M2
STAGN 2	ST 7 CP	STTB 6	SSTGK 3 M2
STA 2	ST 6	STC 4	STGK 7
STA 5	STGN 3	STC 5	STGK 1
STAG 3	ST 03	STTB 3	SSTGN 4
STA 1	ST 1	STTTB 6	STA 7 SE
STAG 1	ST 3	STC 2	SSTGN 1
STAGN 1	ST 2 CP	STC 1	STGK 10
STAGN 4	STG 1	STTB 5	STM 5
STA 7	STG 5	STTB 8	SSTGK 2 M2
STA 9	STG 6	STC 2 CP	SSTGK 5 M2
STAG 9	STG 3	STTTB 3	STGK 3
STA 10	ST 4	STTB 7	SSTGK 8 M2
STAG 8	ST 4 CP	STTTB 2	SSTGK 10 M2
STAG 11	ST 3 CP	STTTB 1	STM 3
STAG 12	ST 6 CP	STAC 1CD	STGK 6
STA 11	ST 5 CP	STTBA 2	STM 2
STA 12	STGN 4	STTBA 5	STM 4
STAG 7	STGN 2	STTTBA 4	STGK 5
STA 8	ST 3 BULK	STAC 6	SSTGK 6 M2
STAG 10	STG 11	STTBA 4	STTBA 6 SE
SST 7	ST 12	STTTBA 6	SSTGN 3
SSTG 2	ST 9	STTTBA 1	STGK 9
SSTG 3	STG 10	STAC 1	STGK 8
SST 8	ST 11	STAC 3	STM 1
SSTG 5	STG 7	STTBA 3	SSTGK 4 M2
SSTG 6	ST 8	STTTBA 2	SSTGK 7 M2
SST 10	STG 9	STTTBA 5	SSTGN 6
SSTG 4	STG 12	STTBA 8	STA 6 SE
SSTC 1CD	ST 7	STTBA 7	SSTGN 2
SSTC 1	STG 8	STAC 2	SSTGN 5
